Class c2.demo.StackVisualization

java.lang.Object
   |
   +----java.awt.Component
           |
           +----java.awt.Container
                   |
                   +----java.awt.Panel
                           |
                           +----java.applet.Applet
                                   |
                                   +----c2.demo.StackVisualization

public class StackVisualization

extends Applet

Implements a C2 architecture that provides two different visualizations for a stack. One visualization displays the entire contents of the stack, while the other one displays only the value of the top stack element and an arc from zero to stack_top mod 360 degrees.

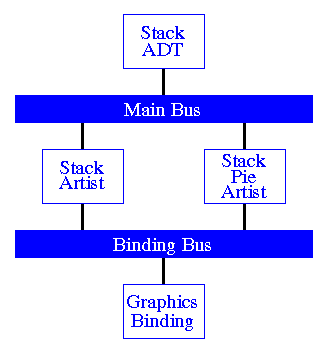

Executes both as a standalone application and an applet. The architecture looks as follows:

A textual equivalent of the above architecture is displayed once the architecture is built.

See Also:

StackADTThread, StackArtist, StackPieArtist, GraphicsBinding

StackVisualization()

init()

main(String[])

  public StackVisualization()

  public static void main(String argv[])

  public void init()

Overrides:

init in class Applet
